Add swaps.xyz swap provider

[j0ntz]

CHANGELOG

Does this branch warrant an entry to the CHANGELOG?

• Yes
• No

Dependencies

none

Description

Integrate swaps.xyz (a MoonPay cross-chain swap aggregator) as a new swap provider.

swaps.xyz exposes a REST API (https://api-v2.swaps.xyz/api, x-api-key auth). getPaths answers whether a pair is routable and with what amount limits; getAction returns the payload that executes it. It is classified as a CENTRALIZED provider (isDex: false, src/swap/central/swapsxyz.ts): every executable payload carries a swaps.xyz server signature from their fee module, and their alt-vm bridges have raised KYC flags, so the venue is server-gated. The Edge DEX litmus asks whether the venue can refuse you, not whether defi appears in the implementation.

One plugin, one pluginId, absorbing all route types (precedent: rango, thorchain). getAction's payload shape depends on the SOURCE chain's vmId, and fetchSwapQuoteInner dispatches on it:

vmId	Payload	Execution
evm	{to, data, value, chainId}	router calldata, plus an ERC20 approval pre-tx when requiresTokenApproval is set. data is '0x' on a route into a non-EVM destination, which is a plain value send to the bridge and gets no memo
solana	{base64Tx, recentBlockhash, payer}	unsigned v0 VersionedTransaction handed to SolanaEngine through spendInfo.otherParams.unsignedTx, as rango and lifi do
alt-vm	{to, toExtra, value, chainId}	deposit address on the source chain; toExtra becomes the chain's memo/tag when the route supplies one (XRP destination tag, XLM memo)

hypercore is rejected with SwapCurrencyError (Edge ships no currency plugin for it), as is any non-DEFAULT executionsType.

Registration. requiresRegisterTransaction comes back true on routes swaps.xyz does not broadcast itself; their docs make it mandatory for non-EVM transactions. makeSwapPluginQuote has no post-broadcast hook, so the plugin wraps the returned quote's approve and POSTs {txId, txHash} to /registerTxs once the hash exists. A registration failure is logged and swallowed: the swap is already on chain, and throwing would report a successful swap as failed.

Limits. getPaths returns minAmount/maxAmount as DECIMAL strings on the source token, not the base units the API reference claims. They are scaled by srcToken.decimals before any comparison (a floor rounds up, a ceiling rounds down, so a sub-unit residue on a low-decimal token can never widen the allowed range). A max request clamps to the route ceiling instead of failing.

Files:

• src/swap/central/swapsxyz.ts — makeSwapsXyzPlugin. Resolves chain ids and token addresses (native = zero address on every VM), calls getPaths then getAction, classifies errors (unsupported chain/token/route and an unpayable destination address → SwapCurrencyError, below min / zero output → SwapBelowLimitError, over max → SwapAboveLimitError, unrecognized codes stay a plain Error so the core does not mis-rank them), and builds the spend per route model. A pure, exported makeSwapsXyzSpendInfo does the response → EdgeSpendInfo translation for unit testing.
• src/mappings/swapsxyz.ts — EdgeCurrencyPluginId → numeric chainId, covering the EVM chains plus the 26 non-EVM chains both Edge and swaps.xyz ship, each cross-checked against the live GET /getChainList. vmId disambiguates ids that belong to an EVM sibling: 314 is tagged alt-vm and a live getAction returns an f1… deposit address, so it is native Filecoin, not Filecoin FEVM (this corrects the earlier filecoinfevm → 314 entry).
• src/index.ts — registers swapsxyz.
• test/swapsxyz.test.ts — unit tests for the pure spend-info construction per route model (EVM native/token, empty calldata, solana native/token, alt-vm with and without a memo) plus end-to-end fetchSwapQuote coverage: the pre-network guards, the getPaths limit pre-check including decimal scaling, the getAction error classification into each typed swap error, the success-response guards, the registration callback firing only when required, and happy-path quotes for EVM and alt-vm sources. Driven with a faked io.fetchCors and faked wallets, following test/nym.test.ts.
• AGENTS.md — a top-level orientation for coding agents on this repo: what the package is and why, the exact verification commands and non-obvious tooling (nyc supplies the sucrase/register hook, so plain npx mocha cannot load TypeScript), the central-vs-defi split and why it is about the venue rather than the payload, the fetchSwapQuote pipeline, the typed-error ranking contract, and an index into docs/. Written against the agents-md guidance that lives in the agent orchestration tooling: kept short because the file enters every session for this repo, with the directory listing, pasted snippets, and lint-enforced style rules deliberately left out.

Runtime key comes from the GUI env as SWAPSXYZ_INIT.apiKey (wiring PR: EdgeApp/edge-react-gui#6128).

Verification: npm run verify passes (prepare + lint + types + test). Exercised against the live swaps.xyz API end-to-end, and driven in-app on the iOS sim to a real executed swap for EACH route model — see the attached test-evidence screenshots (quote "Powered by swaps.xyz" → executed-swap success scene):

• EVM source into an alt-vm destination (empty calldata): Base ETH → LTC
• alt-vm source (deposit address + registration): LTC → Base USDC
• solana source (unsigned transaction): SOL → Base USDC

Known provider constraint: swaps.xyz pays only t3… Zcash addresses, rejecting t1… and unified u1…, so Zcash destinations come back as INVALID_ADDRESS_FORMAT and are surfaced as SwapCurrencyError.

Asana: https://app.asana.com/0/1215088146871429/1217036054017879

---

Note

^{Cursor Bugbot is generating a summary for commit 151ec8e. Configure here.}

[chatgpt-codex-connector]

You have reached your Codex usage limits for code reviews. You can see your limits in the Codex usage dashboard.

[j0ntz]

📸 Test evidence (iOS sim — real swaps.xyz swap)

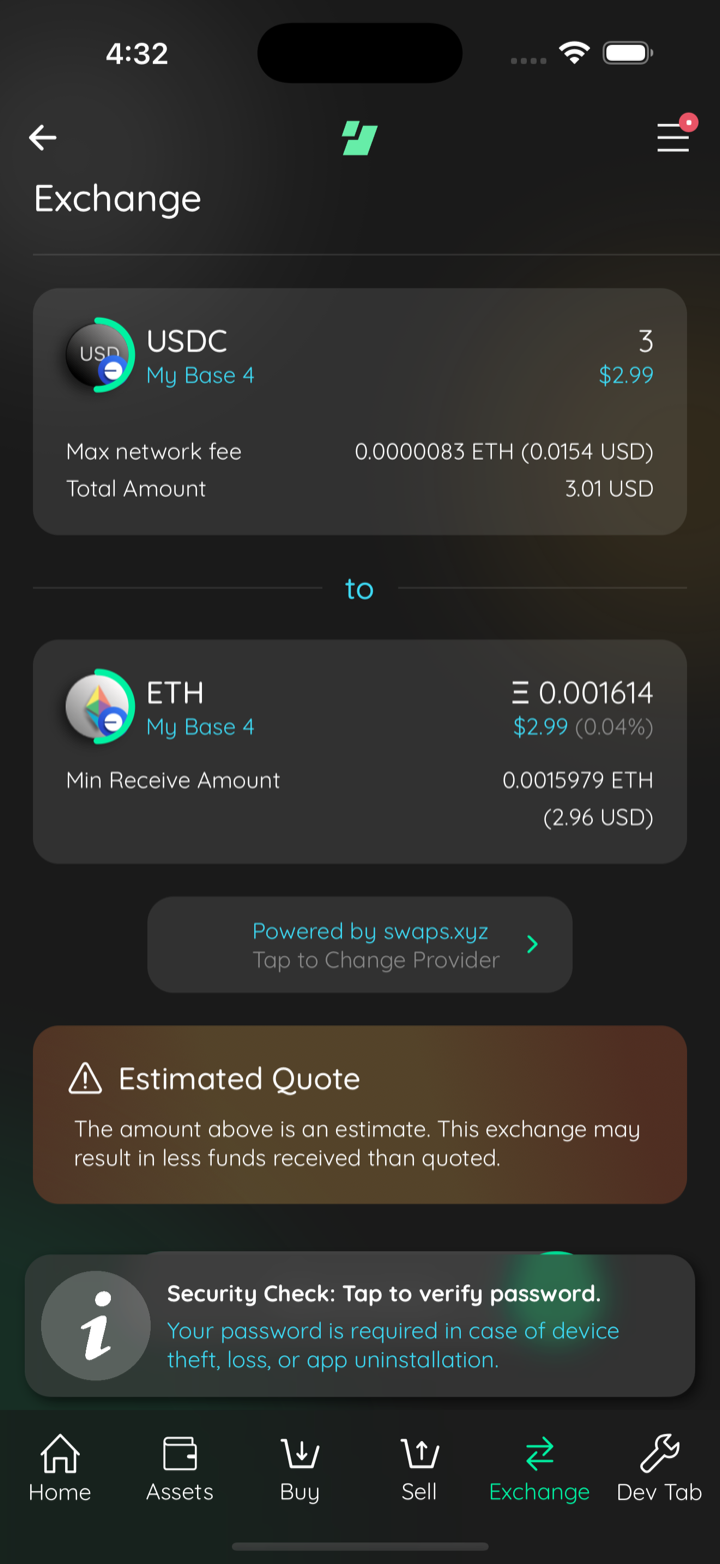

swapsxyz quote

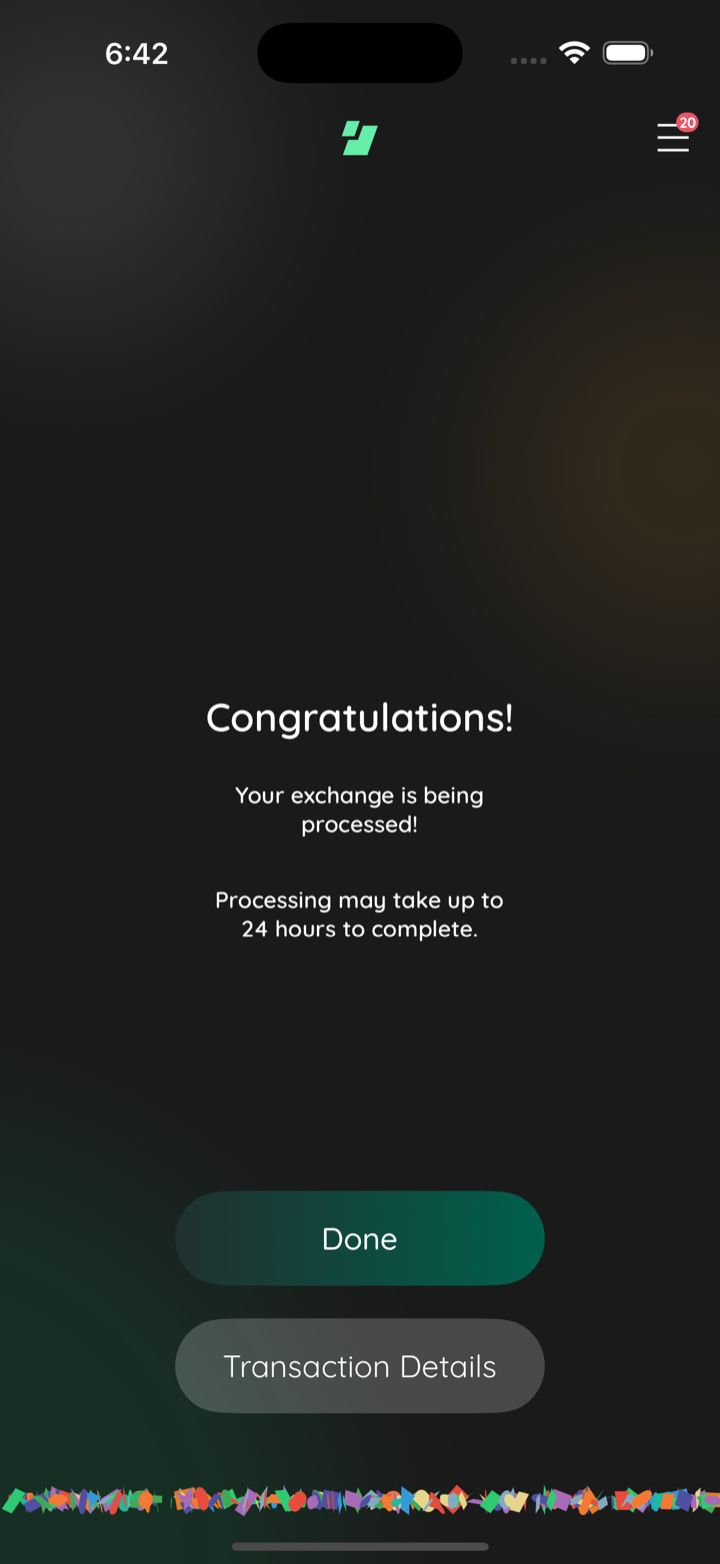

swapsxyz success

Captured by the agent's in-app test run (build-and-test).

[chatgpt-codex-connector]

You have reached your Codex usage limits for code reviews. You can see your limits in the Codex usage dashboard.

[j0ntz]

bugbot run

[cursor]

✅ Bugbot reviewed your changes and found no new issues!

Comment @cursor review or bugbot run to trigger another review on this PR

^{Reviewed by Cursor Bugbot for commit 9541abd. Configure here.}

[j0ntz]

📸 Test evidence (after review fixes): swaps.xyz swap executed on the iOS sim

swapsxyz quote

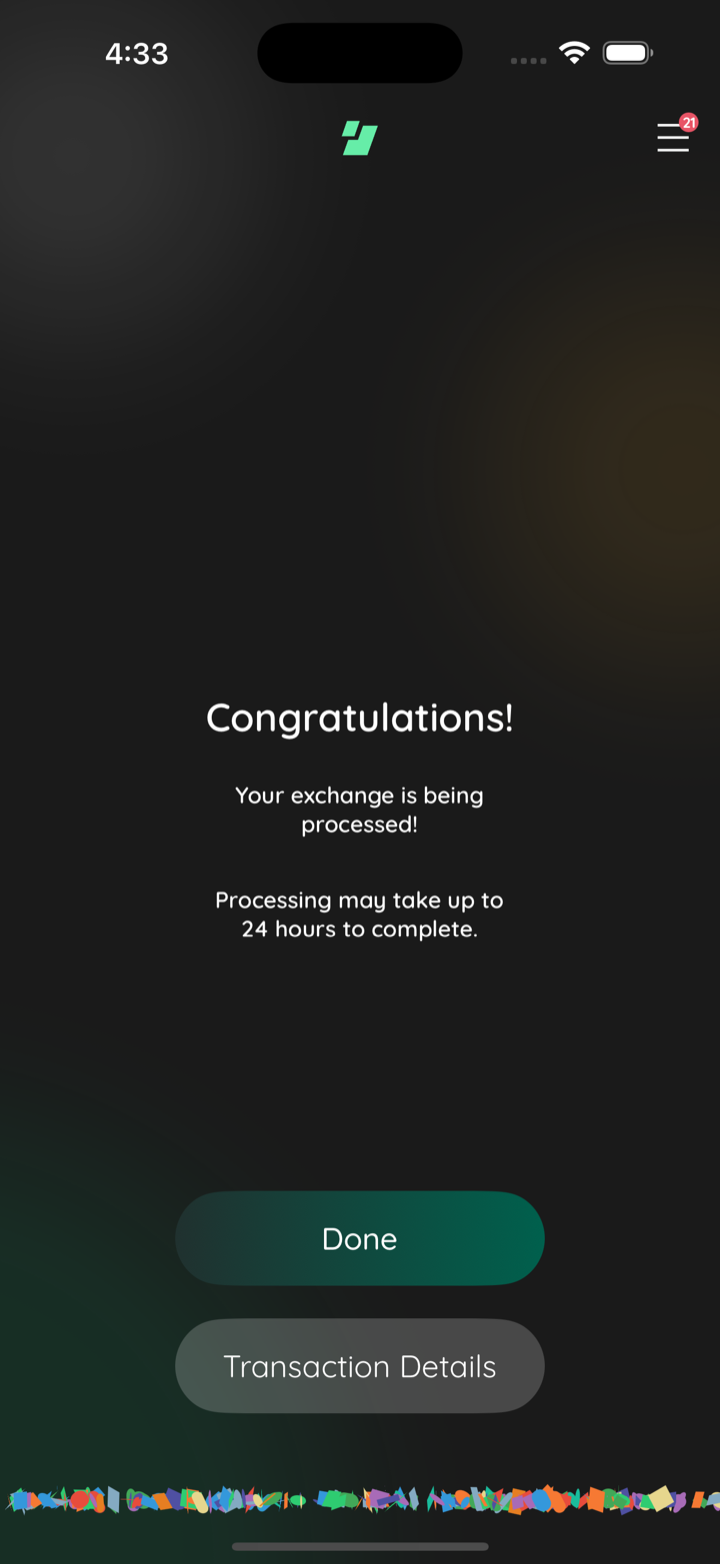

swap success

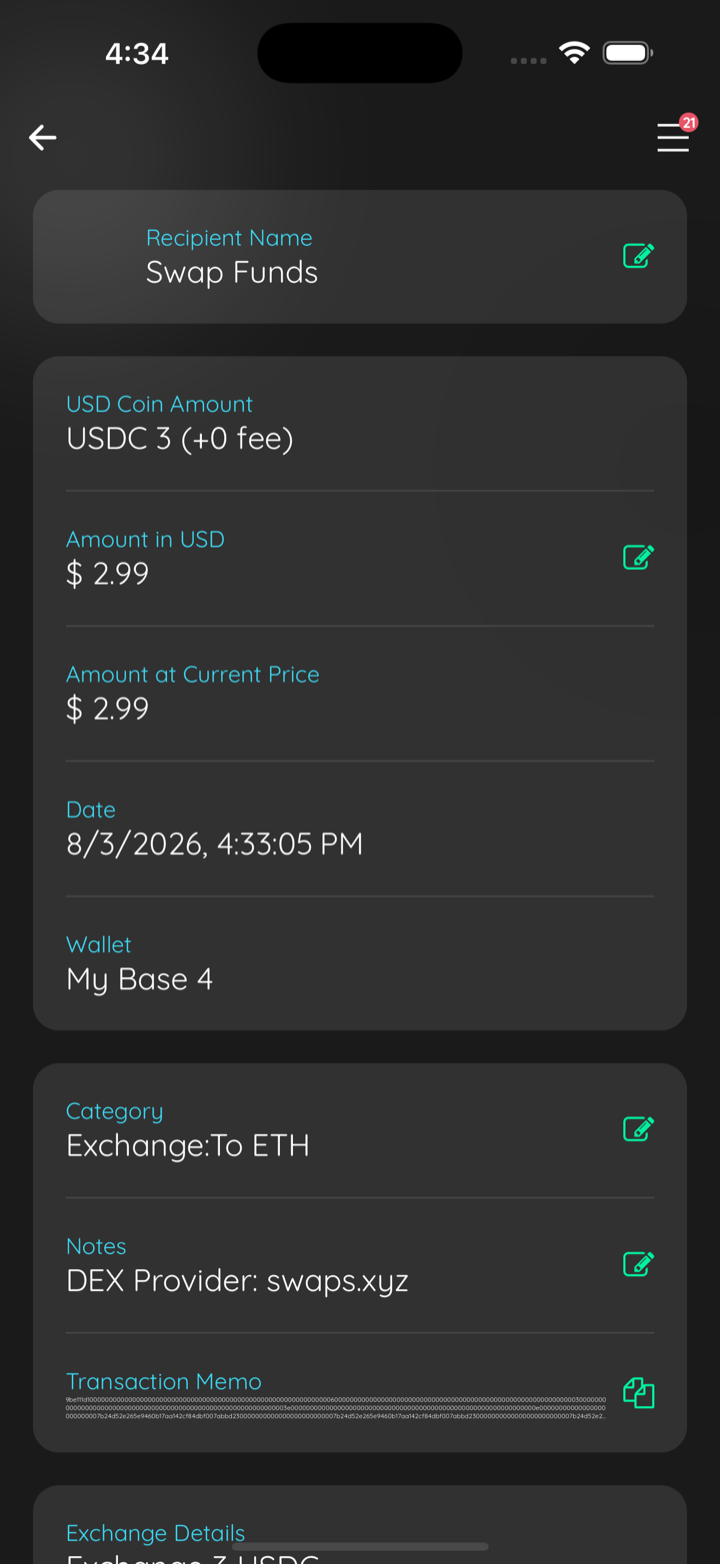

tx details

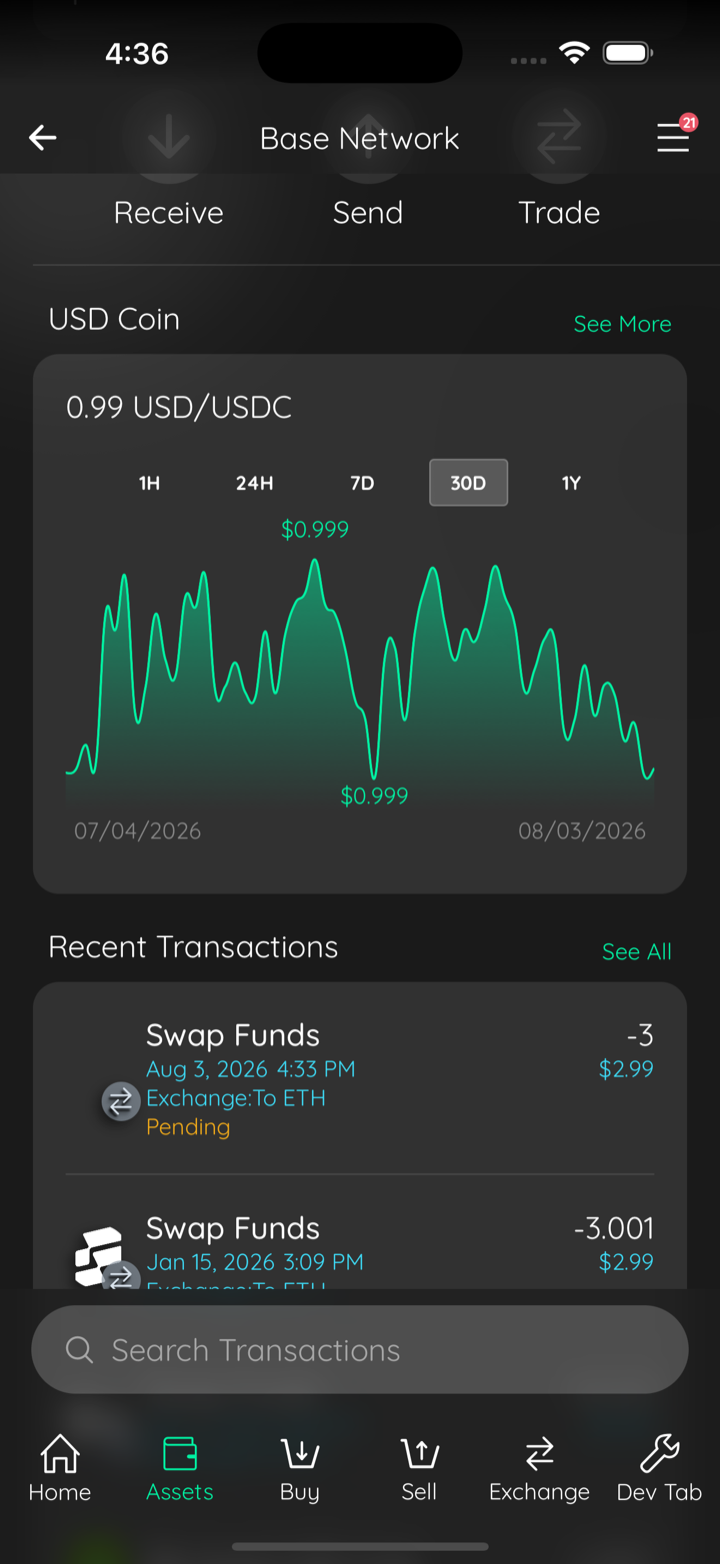

tx list row

Captured by the agent's in-app test run (build-and-test).

[j0ntz]

📸 Test evidence (decimal-limit fix, limit-publishing route)

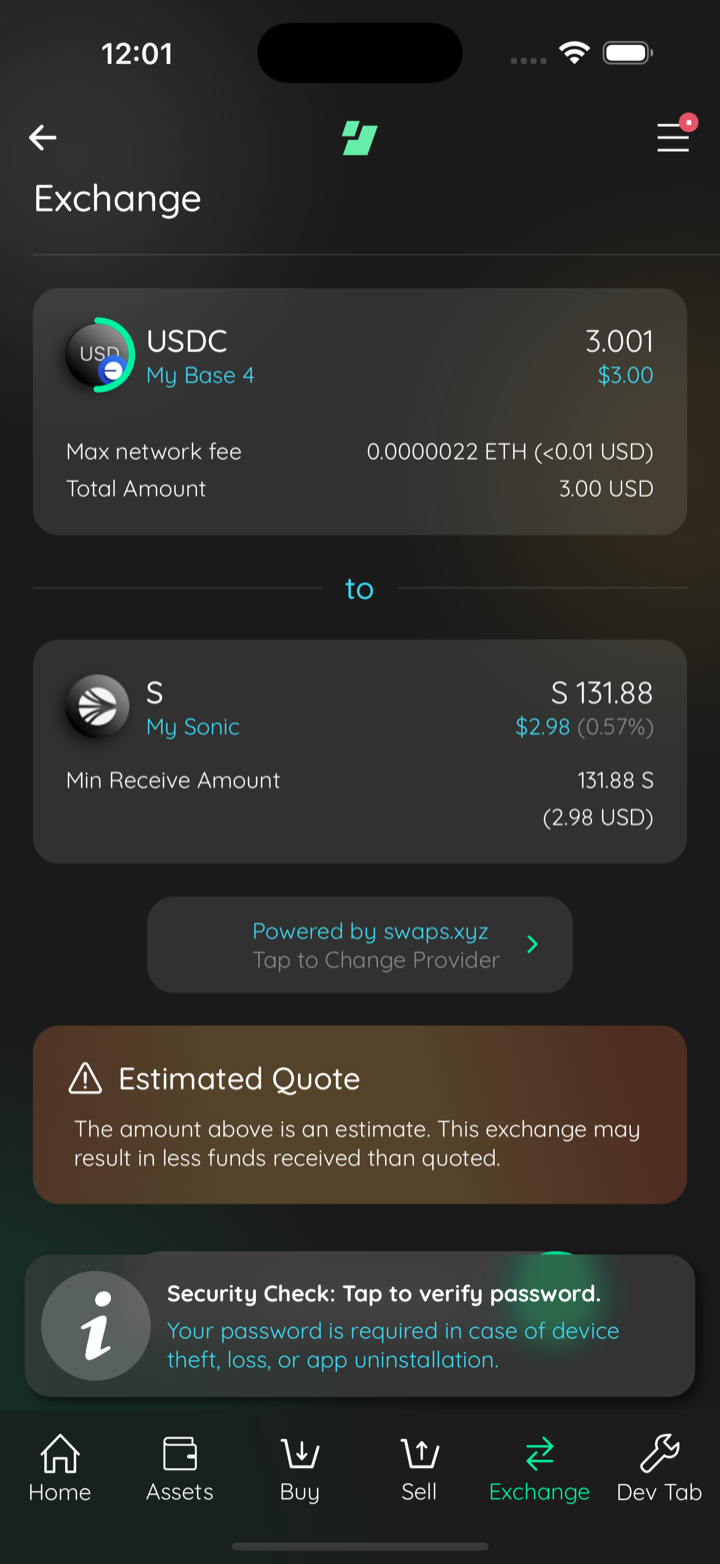

sonic quote decimal limits

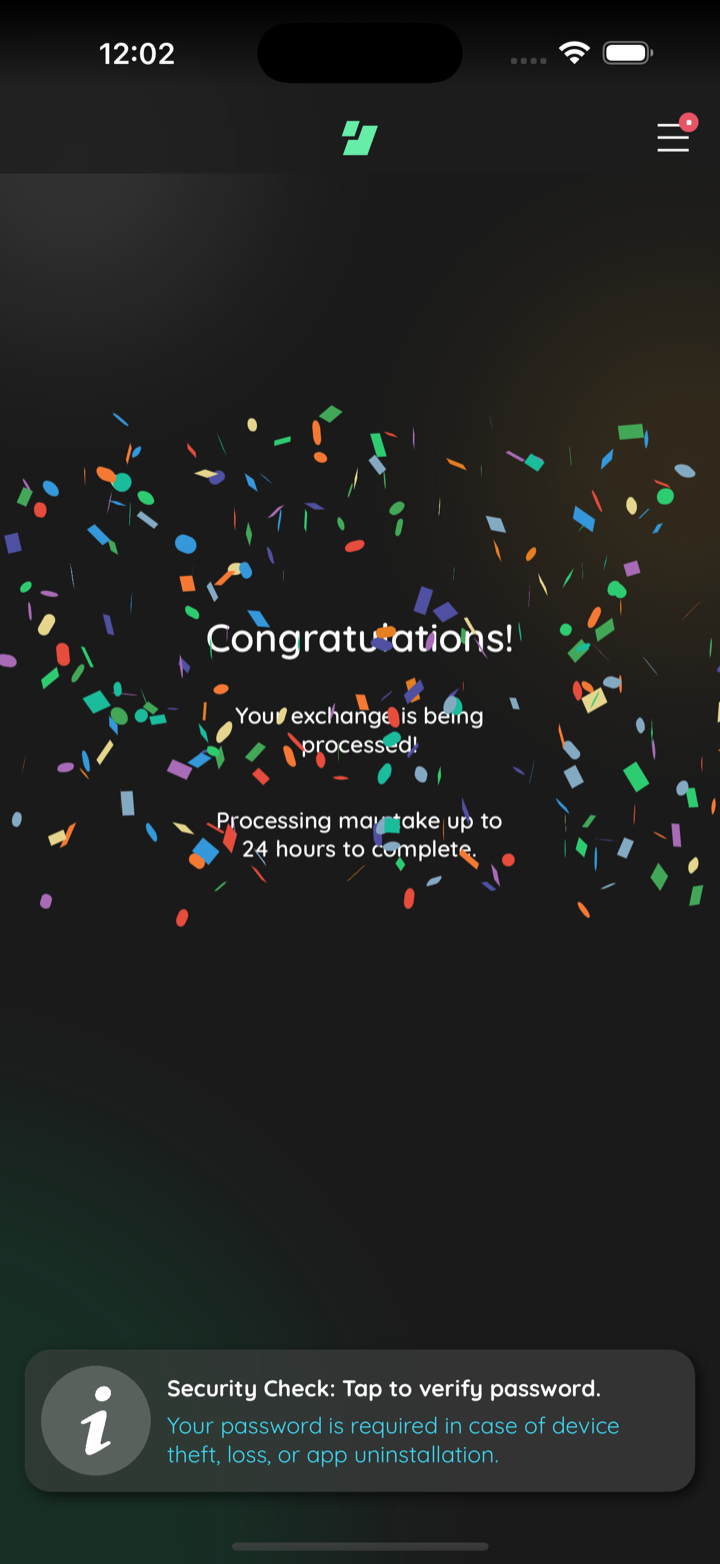

sonic swap success

Captured by the agent's in-app test run (build-and-test).

[j0ntz]

📸 Test evidence: one in-app swap per route model (CEX reclass + solana/alt-vm dispatch)

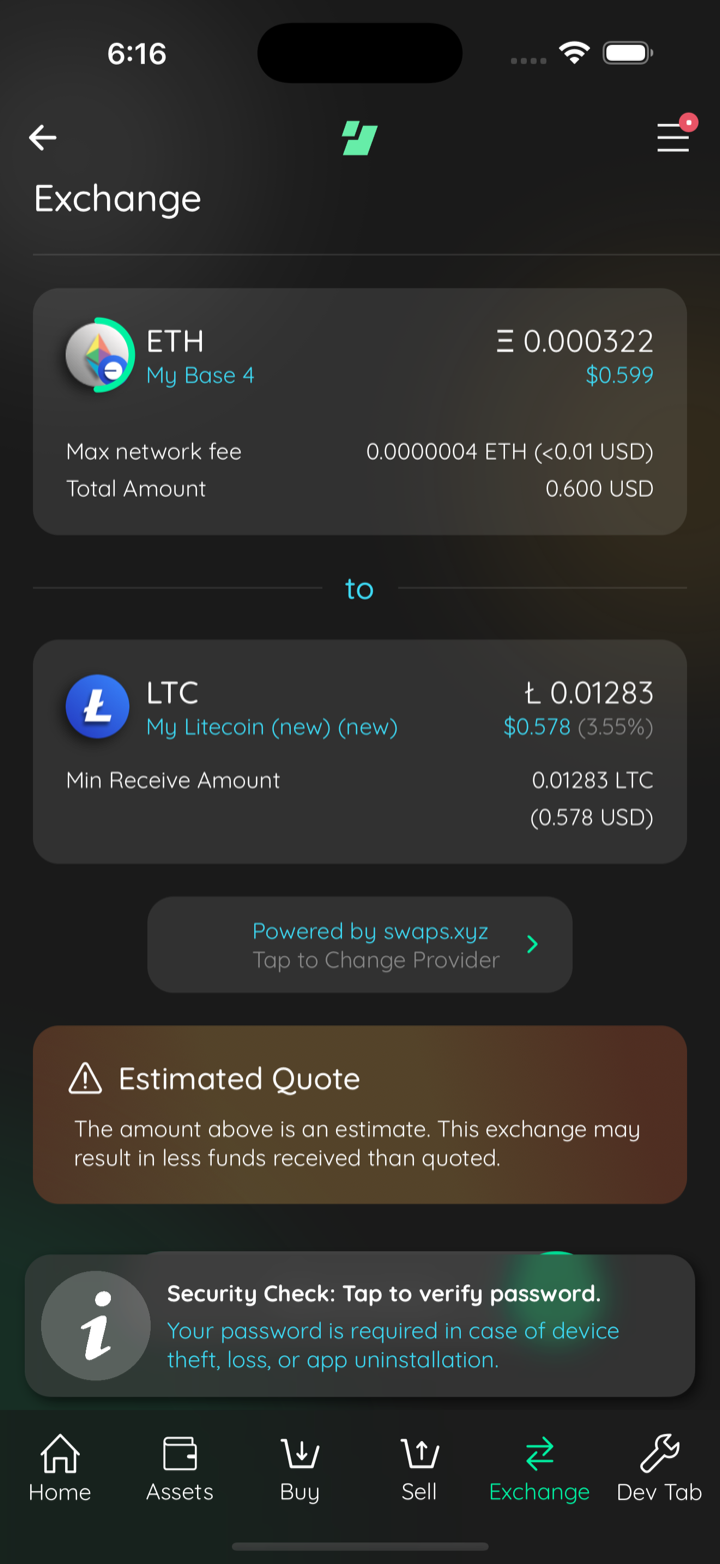

evm to altvm quote

evm to altvm success

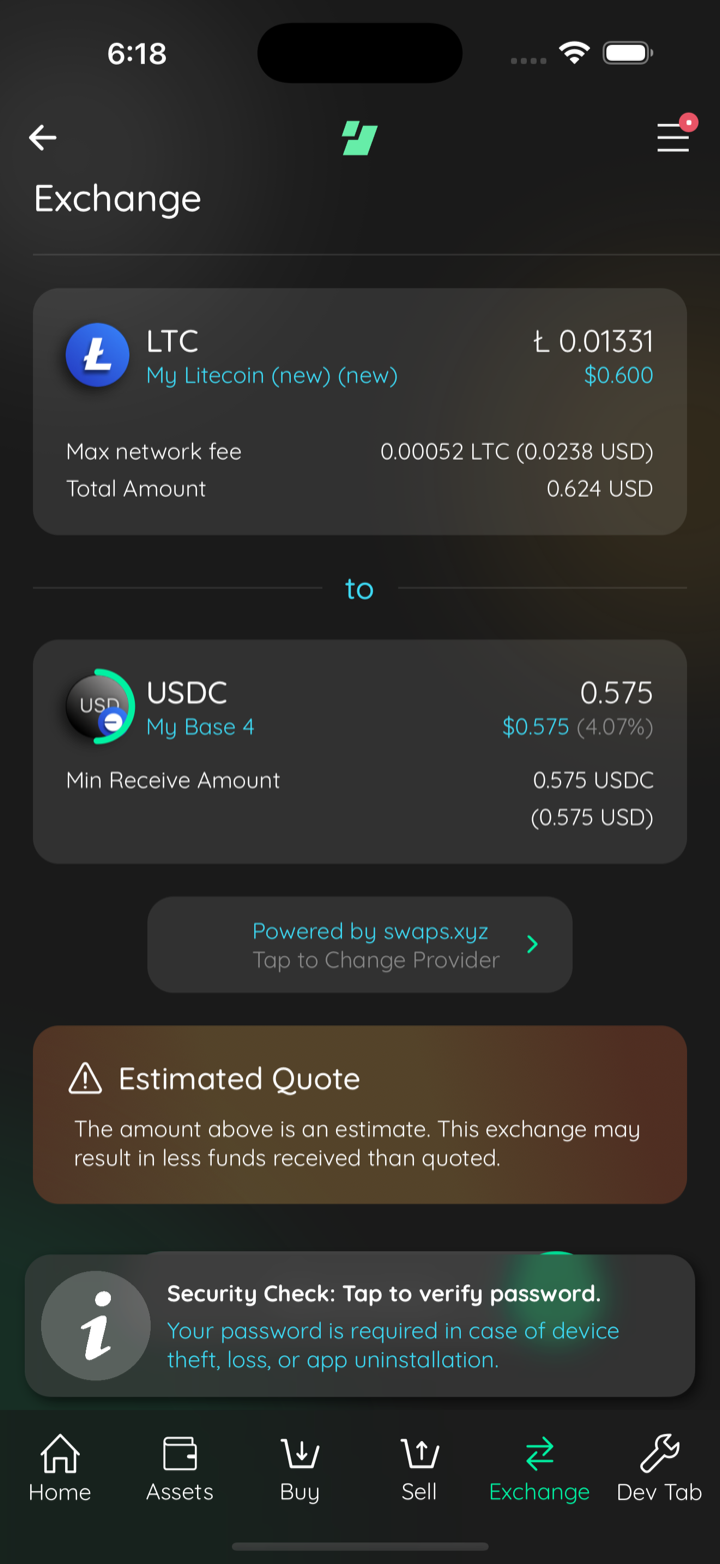

altvm source quote

altvm source success

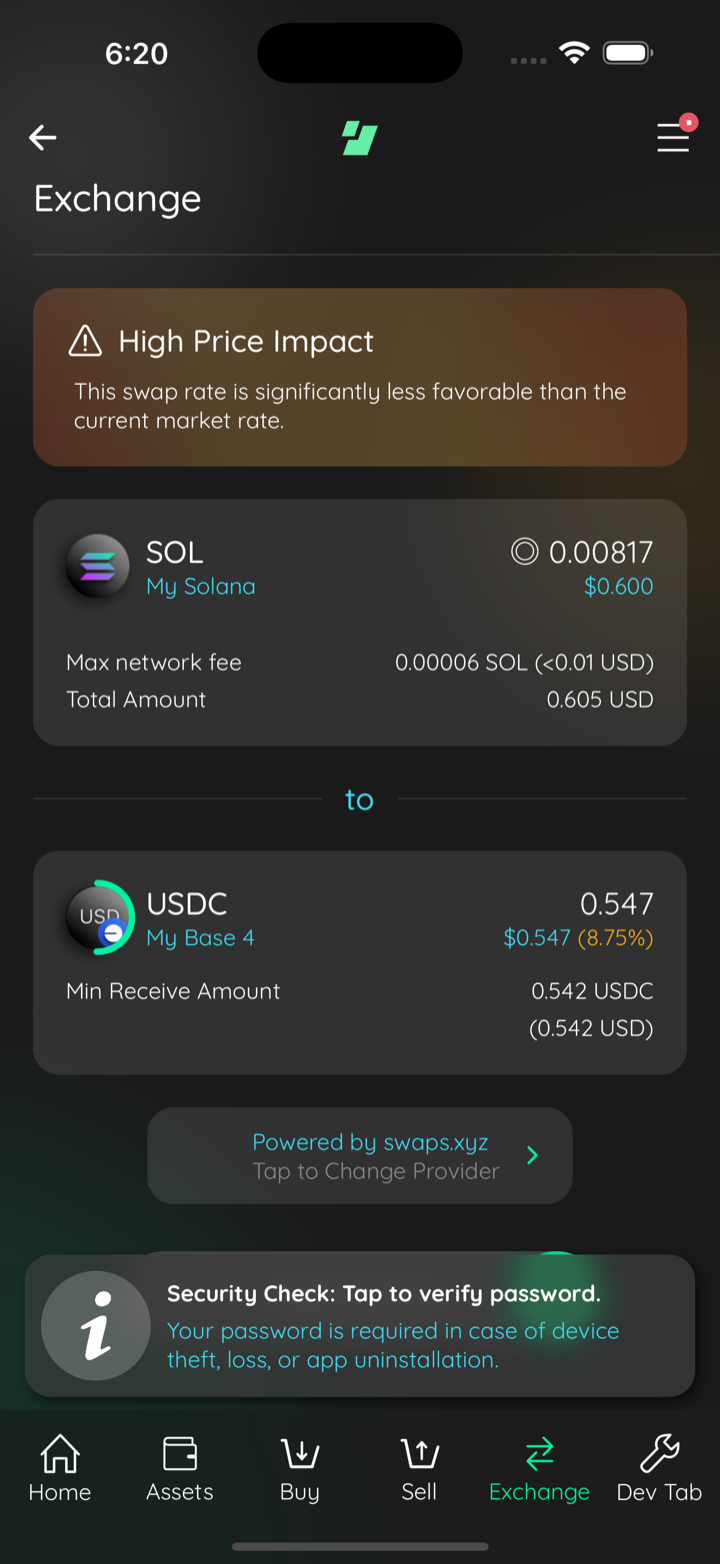

solana quote

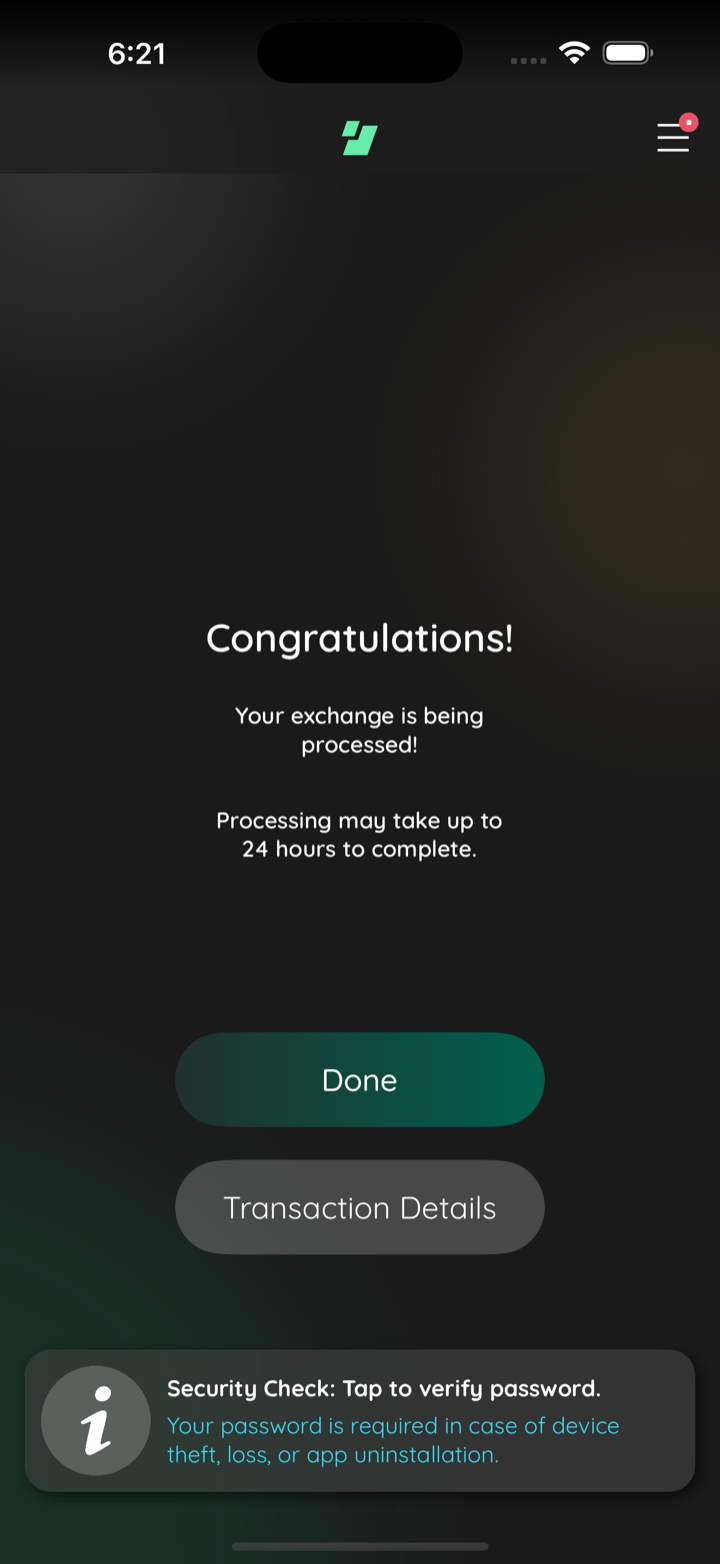

solana success

Captured by the agent's in-app test run (build-and-test).

[j0ntz]

📸 Test evidence (after review fixes)

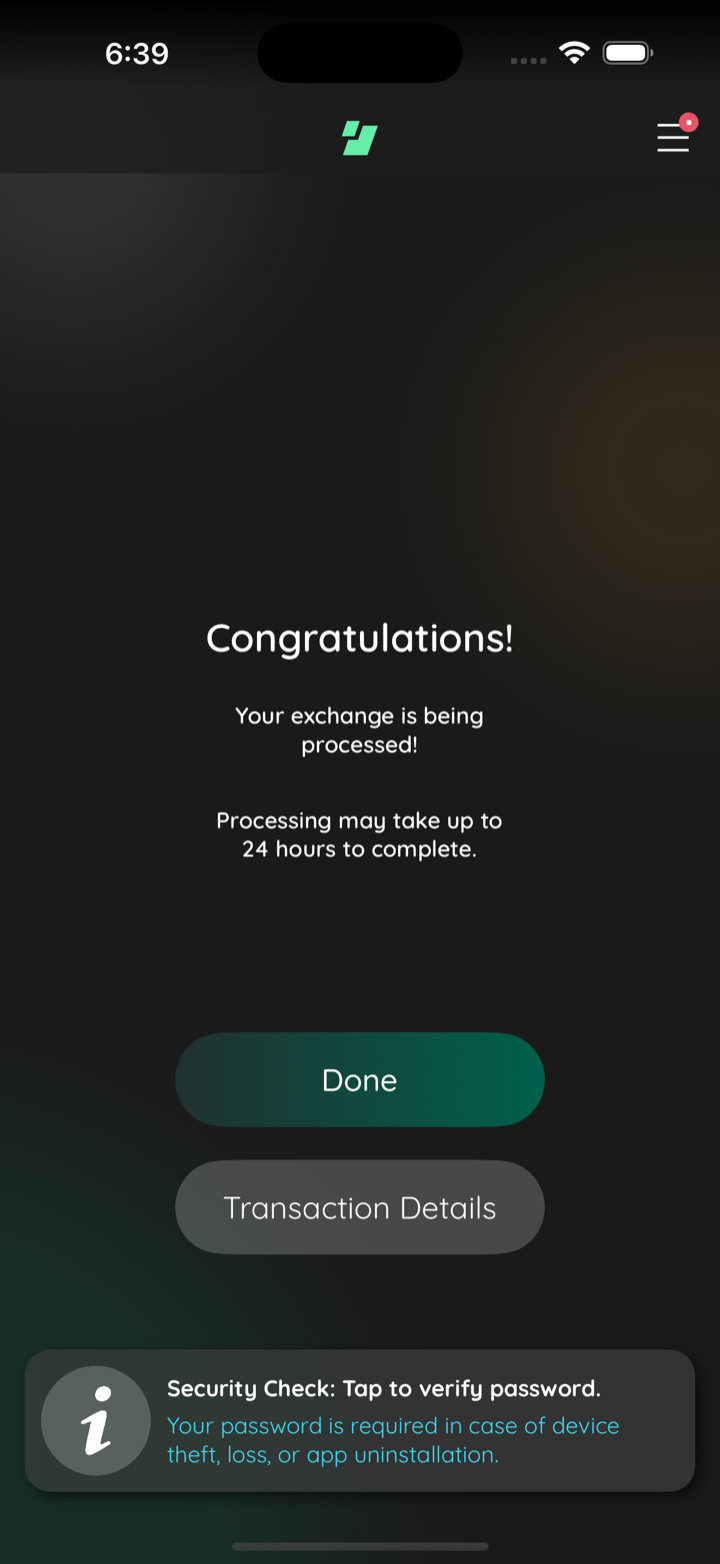

retest after review fixes

Captured by the agent's in-app test run (build-and-test).

[cursor]

Cursor Bugbot has reviewed your changes using high effort and found 1 potential issue.

^{❌ Bugbot Autofix is OFF. To automatically fix reported issues with cloud agents, enable autofix in the Cursor dashboard.}

^{Reviewed by Cursor Bugbot for commit 151ec8e. Configure here.}
