feat(cli): restore cursor overlay through page.evaluate

[shrey150]

Summary

Restore Browse's visible cursor as a CLI-owned DOM overlay, without adding a cursor API to core Stagehand V4.

• Keep the overlay implementation in one dedicated cursor-overlay.ts file.
• Install it idempotently for the current document through page.evaluate(CURSOR_OVERLAY_SCRIPT) and for future navigations through page.addInitScript(...).
• Keep injection in the top frame and update the marker from coordinate input, including when input lands inside a child frame.
• Track mouse movement using a fixed, pointer-events-disabled element.

Stack (#2872)

1. chore(cli): import Browse V3 baseline #2833 — exact Browse V3 baseline import
2. refactor(cli): migrate Browse runtime and commands to Stagehand V4 #2834 — Stagehand V4 runtime and standard command parity
3. feat(cli): restore cursor overlay through page.evaluate #2869 — CLI-owned cursor overlay
4. fix(cli): restore V3 network capture through a CDP sidecar #2849 — CLI-private CDP sidecar; V3 network parity
5. refactor(cli): remove coordinate XPath return flag #2835 — remove --return-xpath; supported V3 parity/release checkpoint
6. test(evals): exercise the workspace V4 CLI #2838 — eval and packaging integration
7. fix(cli): persist context names in Browserbase #2839 — managed Context names (fast-follow)
8. refactor(cli): consume shared Functions core #2701 — shared Functions core consumer (fast-follow)

Why this is separate

The cursor is a self-contained optional visual feature with different review concerns from the combined V4 runtime/command migration: injected DOM/CSS, idempotency, event handling, and screenshot behavior. Keeping it additive on #2834 lets this feature be reviewed or reverted without disturbing browser lifecycle or commands.

E2E Test Matrix

The actual built CLI on final head 79d30de4b ran these flows against synthetic pages in real Browserbase browsers:

browse cursor
browse open <second-synthetic-page>
browse eval "...assert cursor registration survived navigation..."
browse mouse hover 380 270
browse eval "...read the top-level #__browse_cursor_overlay__ style..."
browse screenshot --path cursor.png
browse stop

The point (380, 270) was first asserted to be inside the iframe. The top-document DOM assertion then returned:

{ "exists": true, "left": "380px", "top": "270px", "pointerEvents": "none" }

Command / flow	Observed output	Confidence / sufficiency
browse cursor; navigate the same page; inspect the page-side registration	Registration remained a function after navigation	Proves addInitScript persisted the overlay behavior into a new document
Assert point inside iframe; browse mouse hover 380 270; inspect the top document	One top-level marker at left: 380px, top: 270px, pointer-events: none	Proves iframe-targeted coordinate input updates the top-level overlay
browse screenshot --path cursor.png	34,385-byte PNG with one visible cursor inside the dashed iframe area	Visual proof; does not claim coverage of every iframe nesting pattern
Drag a draggable element onto a drop target whose handler navigates; inspect the landed URL	mouse drag returned dragged: true and the target navigation was observed	Proves the visual-only post-drag marker update cannot turn a successful navigational drag into a reported failure
browse stop	Completed and the real Browserbase test session was cleaned up	Covers live session cleanup
pnpm --filter browse lint	Prettier, ESLint, and TypeScript passed	Static verification for the exact head
pnpm --filter browse test	25 files / 387 tests passed	Full Browse unit/integration suite

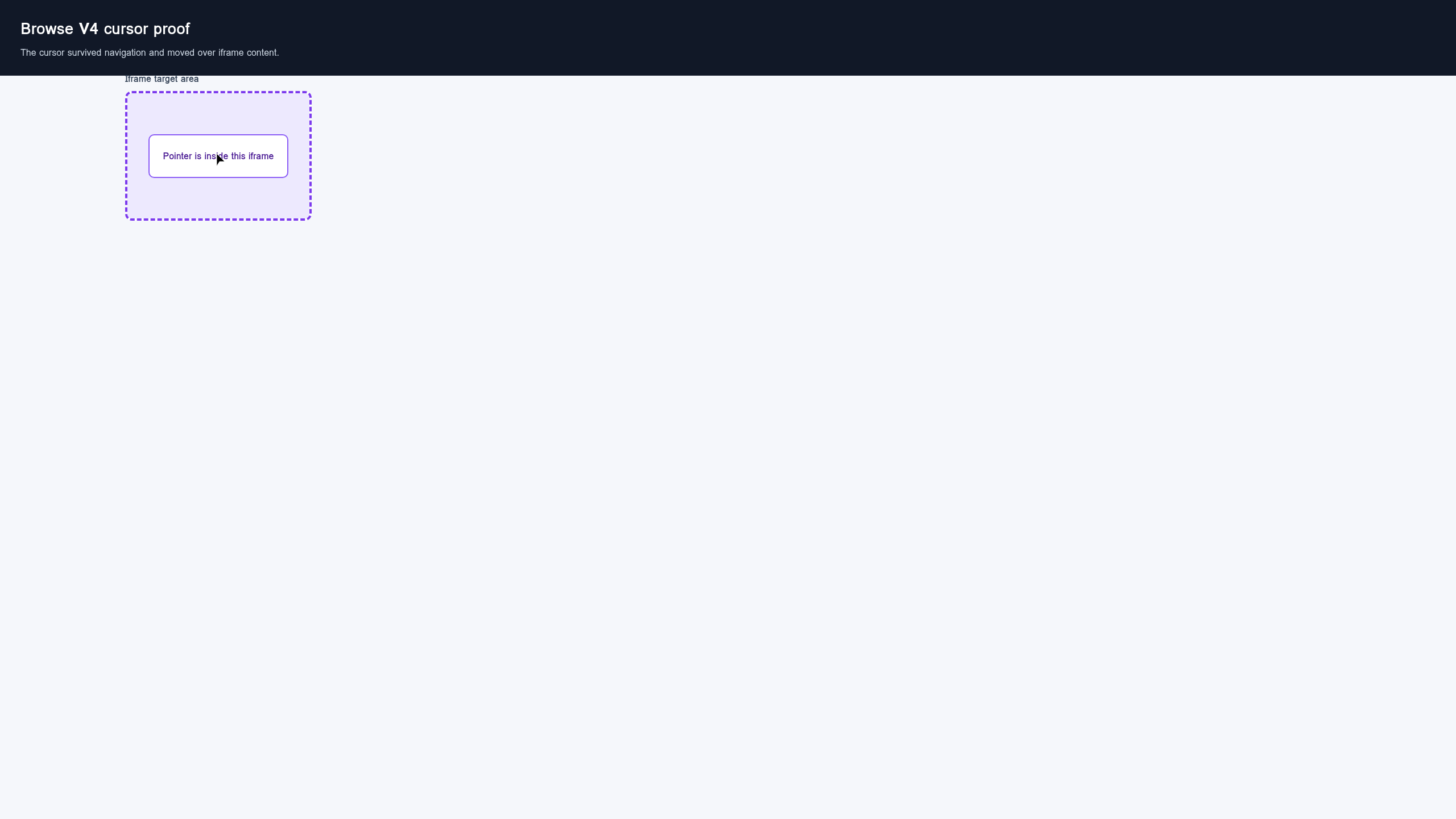

The screenshot visibly shows the single top-level cursor over iframe content after navigation:

The fixtures are synthetic and deterministic; no LLM path is involved.

[changeset-bot]

⚠️ No Changeset found

Latest commit: f1545fe

Merging this PR will not cause a version bump for any packages. If these changes should not result in a new version, you're good to go. If these changes should result in a version bump, you need to add a changeset.

This PR includes no changesets

When changesets are added to this PR, you'll see the packages that this PR includes changesets for and the associated semver types

Click here to learn what changesets are, and how to add one.

Click here if you're a maintainer who wants to add a changeset to this PR

[cubic-dev-ai]

All reported issues were addressed across 4 files

Architecture diagram

sequenceDiagram
    participant User as Browse CLI User
    participant CLI as Browse CLI
    participant Runtime as Runtime Command Handlers
    participant Manager as Page Manager
    participant Page as Active Browser Page
    participant DOM as Page DOM Overlay
    participant Browser as Browser Input and Renderer

    Note over CLI,DOM: CLI-owned cursor visualization (no Stagehand core cursor API)

    User->>CLI: browse cursor
    CLI->>Runtime: Dispatch cursor command
    Runtime->>Manager: Resolve activePage()
    Manager-->>Runtime: Active page
    Runtime->>Page: evaluate(CURSOR_OVERLAY_SCRIPT)
    Page->>DOM: Ensure fixed overlay exists

    alt Overlay already installed
        DOM-->>Page: Reuse __browse_cursor_overlay__
    else Overlay not installed
        DOM->>DOM: Create fixed SVG cursor element
        DOM->>DOM: Set aria-hidden, z-index, pointer-events none
        DOM->>DOM: Append overlay to document root
        DOM->>DOM: Install capture-phase mousemove listener
    end

    Page-->>Runtime: Evaluation complete
    Runtime-->>CLI: Return enabled=true
    CLI-->>User: Cursor overlay enabled

    User->>CLI: browse mouse hover x y
    CLI->>Browser: Move mouse to viewport coordinates
    Browser->>DOM: Dispatch mousemove event
    DOM->>DOM: Clamp clientX and clientY to non-negative values
    DOM->>DOM: Update fixed overlay left and top

    User->>CLI: browse screenshot --path cursor.png
    CLI->>Page: Capture current page
    Page->>Browser: Render DOM and overlay
    Browser-->>CLI: Screenshot including visible cursor
    CLI-->>User: Save cursor.png

Loading

<sub>Reply with feedback, questions, or to request a fix.

Re-trigger cubic</sub>
